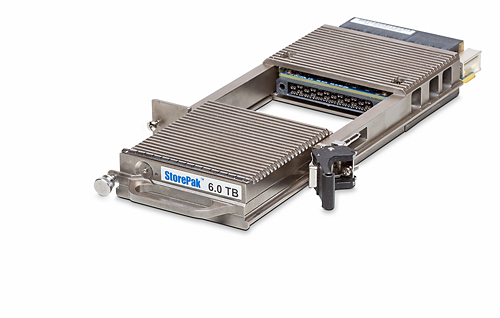

The SP306R-VPX StorePak™ is a removable single slot air-cooled 3U VPX storage module designed to be used either in conjunction with Critical I/O’s StoreEngine storage manager, or as a stand-alone Direct Attach Storage device. The StorePak™ is engineered for easy removal and replacement of on board storage since there are no cables to unplug to remove StorePak™. Specifically engineered for use in rugged embedded systems, StorePak™ provides unmatched storage functionality, high performance, high capacity, and scalability all within a small size, weight, and power (SWaP) footprint.
| Base Model Number | Form Factor | Cooling | Extended Temp Available | Max Storage Capacity | Max Performance | Scalable | RAID | Removable Storage | Backplane Interfaces | Recording & Network File Services |
|---|---|---|---|---|---|---|---|---|---|---|
| SP306N-CCVPX | 3U CCVPX | Conduction | Yes | 12 TB | 5 GB/s | Yes | Host Based | Yes | 7x PCIe Gen3 x4/x8 | If used with StoreEngine |
| SP306N-VPX | 3U VPX | Air | Yes | 12 TB | 5 GB/s | Yes | Host Based | Yes | 7x PCIe Gen3 x4/x8 | If used with StoreEngine |
| SP306R-CCVPX | 3U CCVPX | Conduction | Yes | 6 TB | 2 GB/s | Yes | 0/1/10/1E Hardware Based | Yes | 6x PCIe Gen2 x4/x8 | If used with StoreEngine |
| SP306R-VPX | 3U VPX | Air | Yes | 6 TB | 2 GB/s | Yes | 0/1/10/1E Hardware Based | Yes | 6x PCIe Gen2 x4/x8 | If used with StoreEngine |
| SP606R-CCVPX | 6U CCVPX | Conduction | Yes | 46 TB | 2.5 GB/s | Yes | 0/1/10/1E Hardware Based | Yes | 6x PCIe Gen2 x4/x8 | If used with StoreEngine |
| SP606R-VPX | 6U VPX | Air | Yes | 46 TB | 2.5 GB/s | Yes | 0/1/10/1E Hardware Based | Yes | 6x PCIe Gen2 x4/x8 | If used with StoreEngine |
StorePak™ Data Offload Station allows StorePak removable SSD modules to be connected directly to a desktop PC or server for offload of data from the StorePak. The offload station includes a PCIe controller board, cable, a StorePak adapter unit, and offload software.
Critical I/O is the leading provider of high speed networking & advanced storage solutions for embedded computing, avionics and military applications.
Critical I/O’s technology focus is high capacity removable SSD storage, and high performance interfaces supporting protocols such as RDMA.
